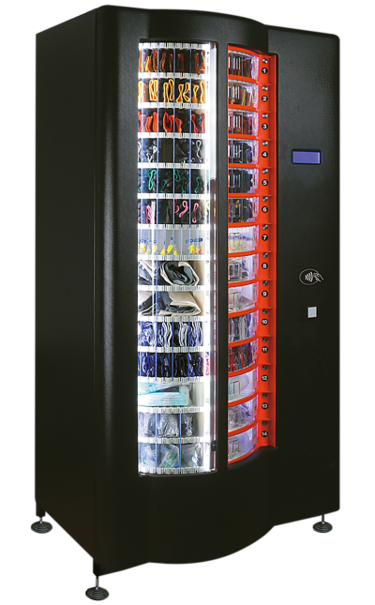

Automatic dispenser of PPE and high turnover materials
Capacity
- 14 plates on rotating tray with cells H 100 mm, adjustable width (6/12/18/24/36/72 cells per plate). Up to 1008 cells total.
Product Management
- User identification for enabled withdrawal according to assigned profiles.
- Real-time tracking and monitoring of withdrawals and returns.
- Management of up to 3 different products per plate.
- On-site reconfiguration of the number of cells per plate and door opening mode.
Withdrawal
- 24-hour online/offline withdrawal, with data recording within the assigned limits.
- Guided extraordinary authorisation for the withdrawal of unallocated products, or exceeding of limits, via Super User badge.
- Mechanical release in the event of power failure or fault.
Illuminated button for signalling and selection of the product to be picked.
External button for manual plate rotation.
Double height plate for bulkier products (optional).
Backlit 4-line alphanumeric display.
Coloured separators to facilitate identification of the item to be withdrawn in the case of multi-product trays.
User Interface
- Sliding withdrawal doors with convex profile, manual opening with pre-opening with acoustic and optical signalling.
- Badge reader (magnetic, contactless, etc.) for withdrawal authorisation.
- Illuminated buttons for signalling products that can be picked up.
- Customised graphics for preliminary product identification in compartments.
- Backlit 4-line alphanumeric display.
- Large illuminated showcase with convex profile for turntable bending.
Company Interface
- LAN / Wi-Fi / GSM connection.
- Underwriting report with e-mail sent to charging staff.
- Access to compartments with security key (NOT DUPLICABLE) provided, should the need arise.
- Automatisms for enabling workers based on selectable parameters (department, job title, cost center, task, etc.).
- Programmable self-diagnosis with fault signalling and e-mailing to managers.
Energy Saving
- Timed Energy Saving function in standby to reduce consumption during inactivity, in accordance with eco-sustainability principles.
Technical Specifications
Power Supply: |
220 VAc – 50 Hz – 150 W |
Overall Dimensions (cm): |
L = 100 |
H = 200 |
P = 75,5 |
Empty Machine Weight: |
200 kg |
