Multifunctional automated cabinet
Capacity
- 19 compartments H 180 mm, width 400 mm, depth 550 mm.
Product Management
- Identification system for product withdrawal/return reserved for authorised users, also offline, with data logging.
- Real-time tracking and monitoring of withdrawals and returns.
- Management and tracking of multiple copies of the same product in the compartment.
- Management of several copies of the same product within one compartment.
Withdrawal
- 24-hour online/offline pick-up and return, with data logging and access control for enabled profiles, within assigned limits.
- Guided extraordinary authorisation for the withdrawal of unallocated products, or exceeding of limits, via Super User badge.
- Mechanical release in the event of power failure or fault.
Pocket with customisable image of the product contained in the compartment.
10" touchscreen for user interface.
Double/triple height compartment option for bulky objects
Internal charging socket also for double-height doors (optional).
Immediate user identification via ID card.
User Interface
- 10" touchscreen for user interface and detailed dispensing and/or collection instructions.

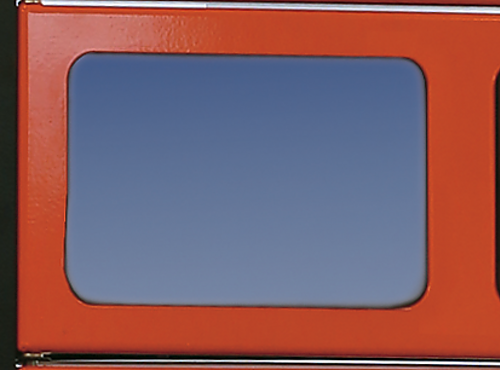

- Doors with large transparent display window, automatic opening and acoustic/optical signalling of open door.
- Badge reader (magnetic, contactless, etc.) for withdrawal authorisation.
- Luminous indicators for signalling products that can be taken from the corresponding compartments.
- Customised graphics for preliminary product identification in compartments.
- Management and tracking of multiple copies of the same product in the compartment.
Company Interface
- LAN / Wi-Fi / GSM connection.
- Underwriting report with e-mail sent to charging staff.
- Access to compartments with security key (NOT DUPLICABLE) provided, should the need arise.
- Automatisms for enabling workers based on selectable parameters (department, job title, cost center, task, etc.).
- Programmable self-diagnosis with fault signalling and e-mailing to managers.
Energy Saving
- Timed Energy Saving function in standby to reduce consumption during inactivity, in accordance with eco-sustainability principles.
Technical Specifications
Power Supply: |
220 VAc – 50 Hz – 150 W |
Overall Dimensions (cm): |
L = 100 |
H = 200 |
P = 66 |
Empty Machine Weight: |
200 kg |
