Storage capacity
14 trays on rotating carousel.
100-mm high slots adjustable in width for each tray
(6 – 12 – 18 – 24 – 36 -72 slots per tray).
Maximum capacity: 1008 slots.
Optional 200-mm high slots adjustable in width for each tray
(6 – 12 – 18 -24 slots per tray).
Products management
Easy on-site reconfiguration
Simple reconfiguration of the number of slots per tray.
Multi-product trays
Management of different products on the same tray
(up to 18 different products for each tray).
Withdrawal sliding door in use indicator led
Pre-opening of withdrawal sliding door
10” touch-screen display for user interface
Possibility of reservation and/or ordering of products not included in the dispenser
Withdrawal
On-line withdrawal
24×365 PPE storage and withdrawal by personnel identified and authorized via company employee ID badge and real-time tracking of all operations.
Automatic positioning of the selected product on the first full slot.
Off-line withdrawal
24/7 identification and authorization to withdrawal the products assigned to users according to job profile, also in the case of network off-line, and data storage.
Automatic positioning of the selected product on the first full slot.
Exceeding of withdrawal limit
If the withdrawal limit is exceeded or a non-assigned product is required, the user is guided to obtain authorization through reading of his supervisor’s badge (super user).
Withdrawal authorization
In the case of exceeding of the limits or a non-assigned product is required, the user is guided to obtain authorization through reading of his supervisor’s badge (super user).
User interface

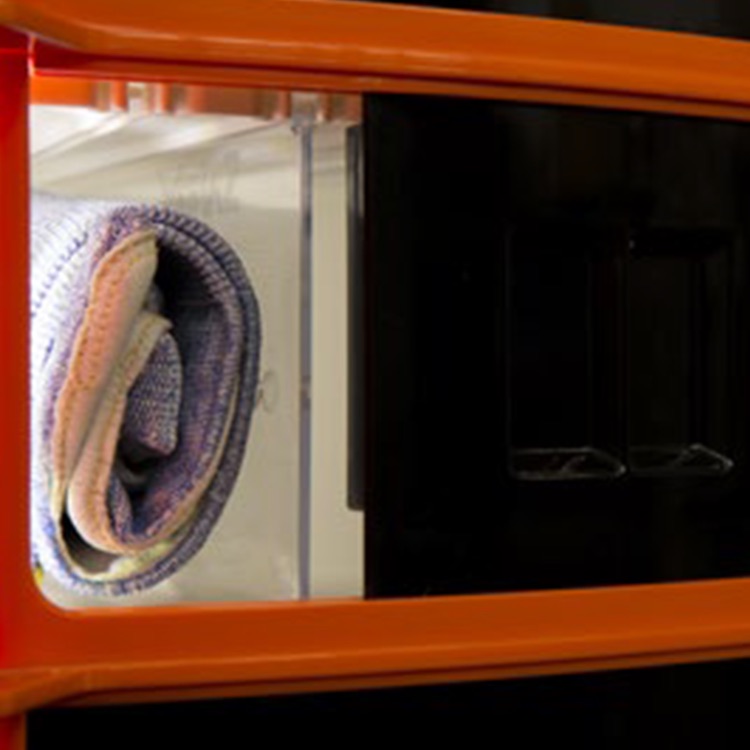

Sliding doors
Manually-activated, convex-profile sliding doors with visual and acoustic warning if door has been left open.
Badge reader
Identification via company employee ID badge reader (magnetic, contactless,…).
Product positioning
Automatic positioning of the product selected for withdrawal.

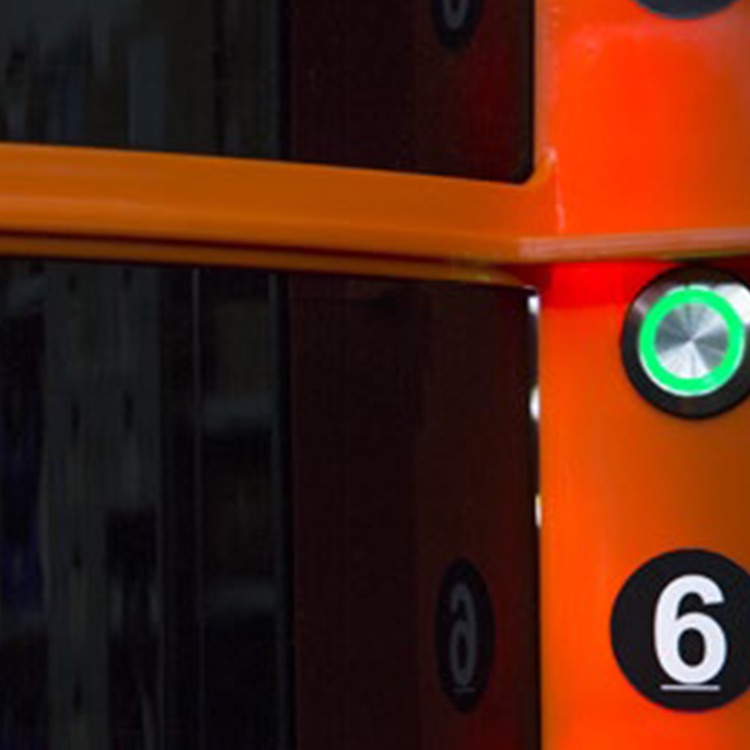

Led
Indicator led of the sliding door from which to withdraw the product.

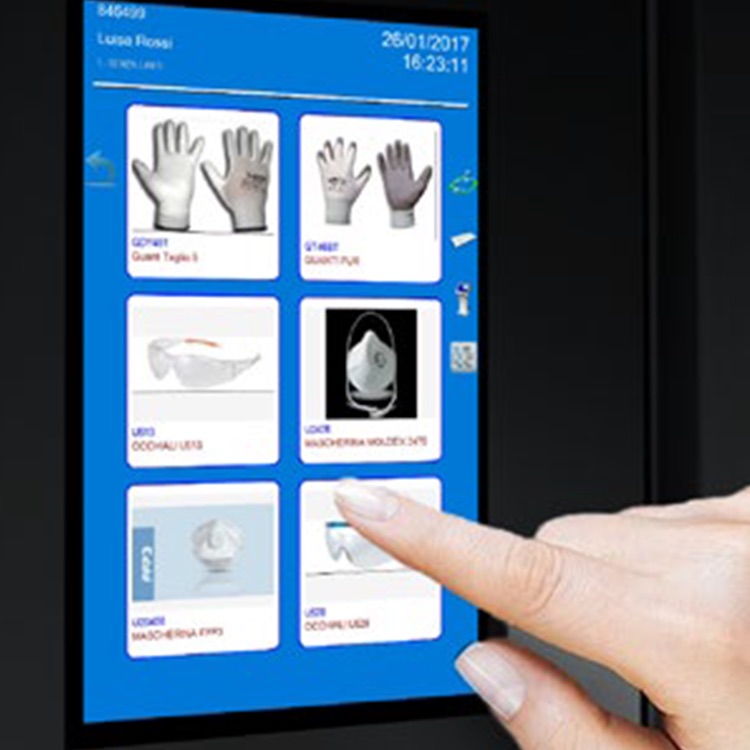

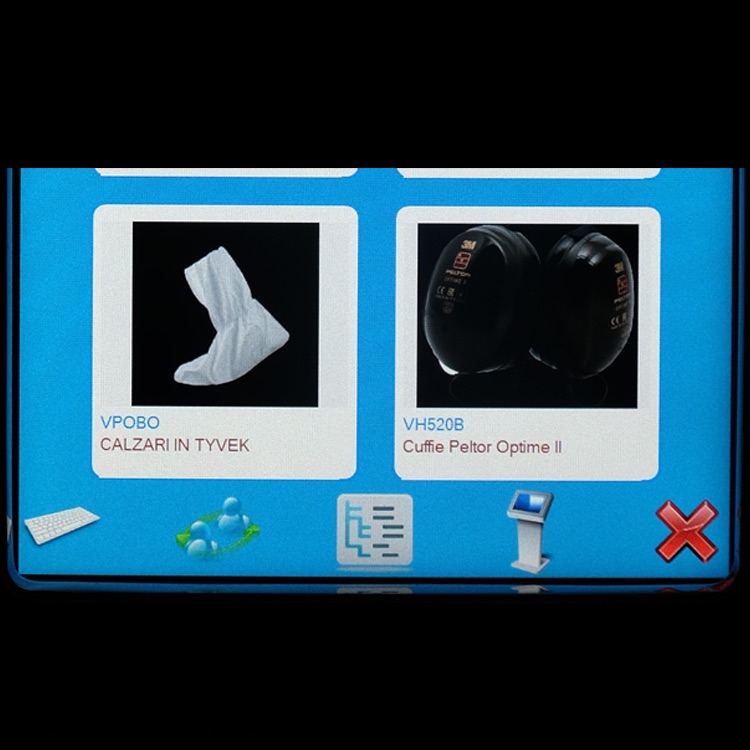

Touch-screen display
10” touch-screen display for user interface and for displaying detailed instructions for withdrawal and/or ordering of products not present in the dispenser.
Company interface
Connection
Connection to Ethernet LAN/Wi-Fi/GSM.
Alerts
E-mail alerts to supervisors to track users who have withdrawn less than the predefined minimum quantity of products during working days (which may also be calculated according to actual working days if interfaced with the company attendance recording system).
Low inventory alerts with continuous monitoring and e-mail alerts to refill personnel.
Software interface
In the case of frequent job rotation, the software can be interfaced with the company HR and EHS management system.
Automatic procedures
Automatic job profile assignment according to customizable parameters (department, job requirements, cost center, etc.).
Self-diagnosis
Self-diagnosis at predefined intervals with acoustic warning in the case of malfunctions.
Disabling of products
Possibility of complete or partial disable of a product by refill personnel in the case of shortage of products for replenishment. To overcome this situation, a stock of materials can be set up in the space provided inside the dispenser (capacity of 180 liters).
Energy saving
Energy-saving function for activation of stand-by mode during periods of inactivity.
Multifunctional features
- Selection of product to be withdrawn via 10” touch-screen display.
- Immediate withdrawal of the products assigned to the job profile declared by the user.
Possibility for super users of entering a new user directly on the 10” touch screen. - Product management with FIFO method and/or according to product expiry date.
Possibility of requesting and/or of reservation of other products not included in the dispenser from the customized catalogue. - Display of the product technical data-sheet before withdrawal.
Technical Features
Power supply
220VAc – 50 Hz – 150 W
Dimensions
H= 2000 mm
L= 1000 mm
P= 755 mm
Weight
abt 270 kg
