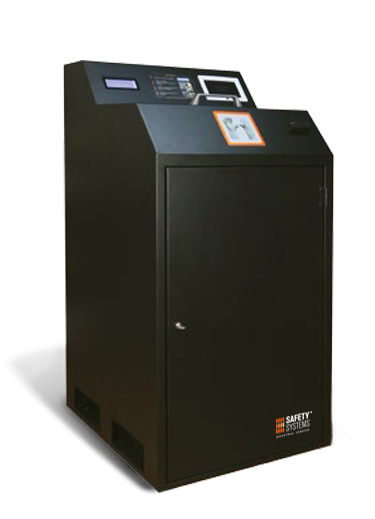

Automated collection Unit

Automated collection Unit

User interface

Badge reader
Company employee ID badge reader (magnetic, contactless…).
Alphanumeric display
Alphanumeric display for user messages.

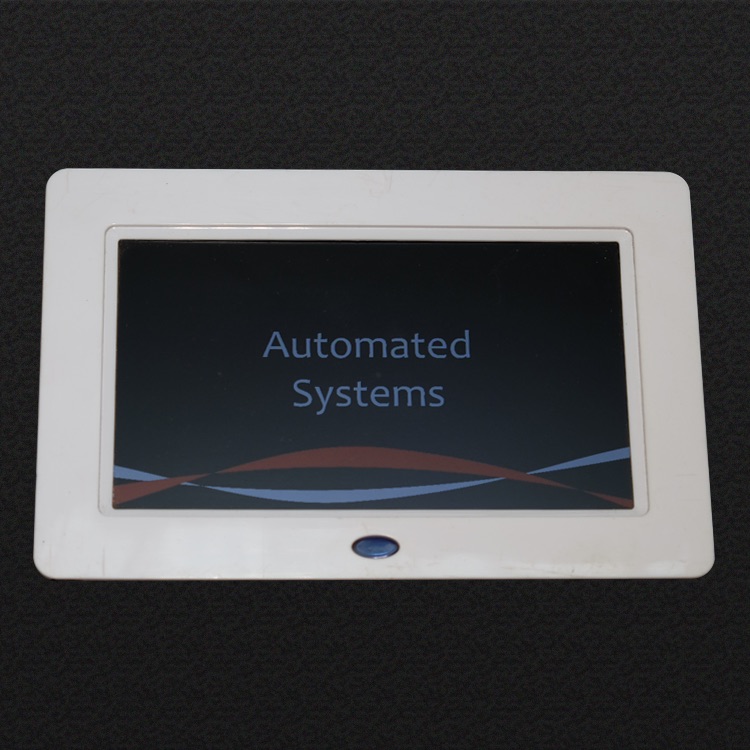

7” display to communicate with users via images or texts in HD graphic format.
Product Identification
Graphic identification of products with customized icons.
Return bin

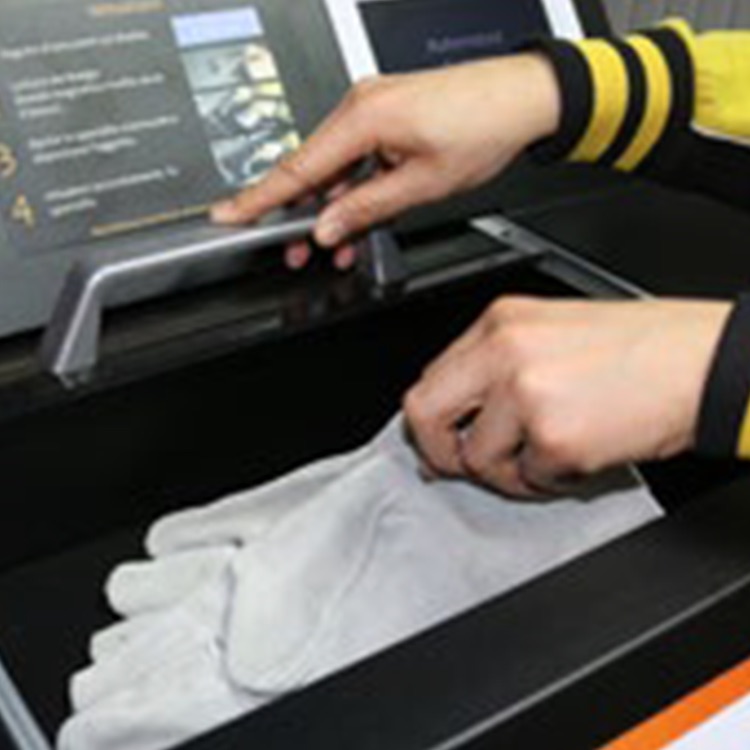

Horizontal sliding door for return of used items.

Horizontal sliding door for deposit of used items
in the bin
Backlit alphanumeric display for communication with the user

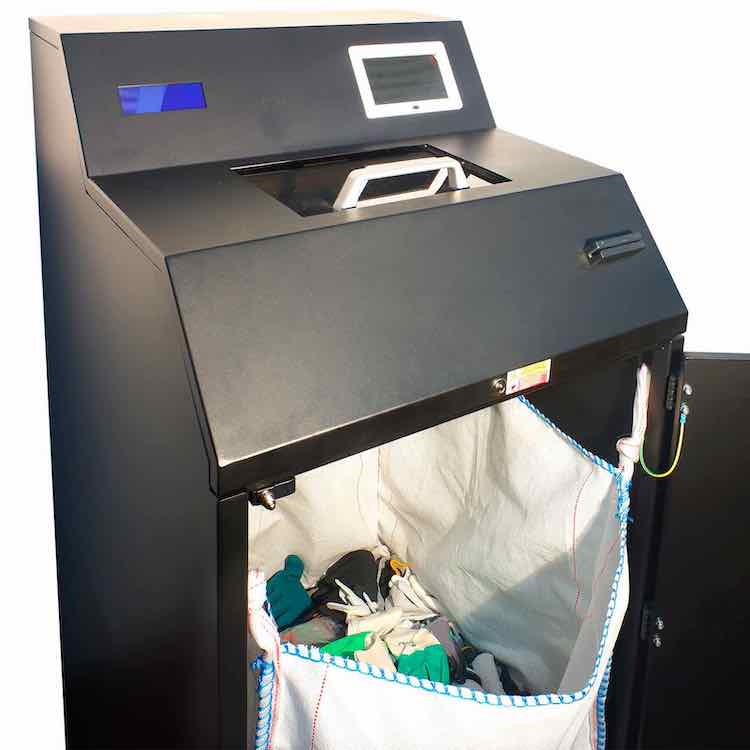

Lockable front access door for UNI 840 120/240-l wheeled bins
7” display to communicate with users via images or texts in HD graphic format

Company interface

Connection to Ethernet LAN/Wi-Fi/GSM.
Collection bin filling level alert with transmission of messages to collection operators.
Software interface
In the case of frequent job rotation, the software can be interfaced with the company HR and EHS management system.
Automatic procedures
Automatic authorization of workers according to customizable parameters (department, position, cost center, job profile, etc.).
Self-diagnosis at predefined intervals with automatic alerts in the case of malfunctions.

Technical Features

Power supply
220VAc – 50 Hz – 150 W
H= 1300 mm
L= 710 mm
P= 780 mm
Deposit automatic door dimensions
H= 400 mm
L= 270 mm
Access space for bin’s replacement
H= 1050 mm
L= 610 mm
