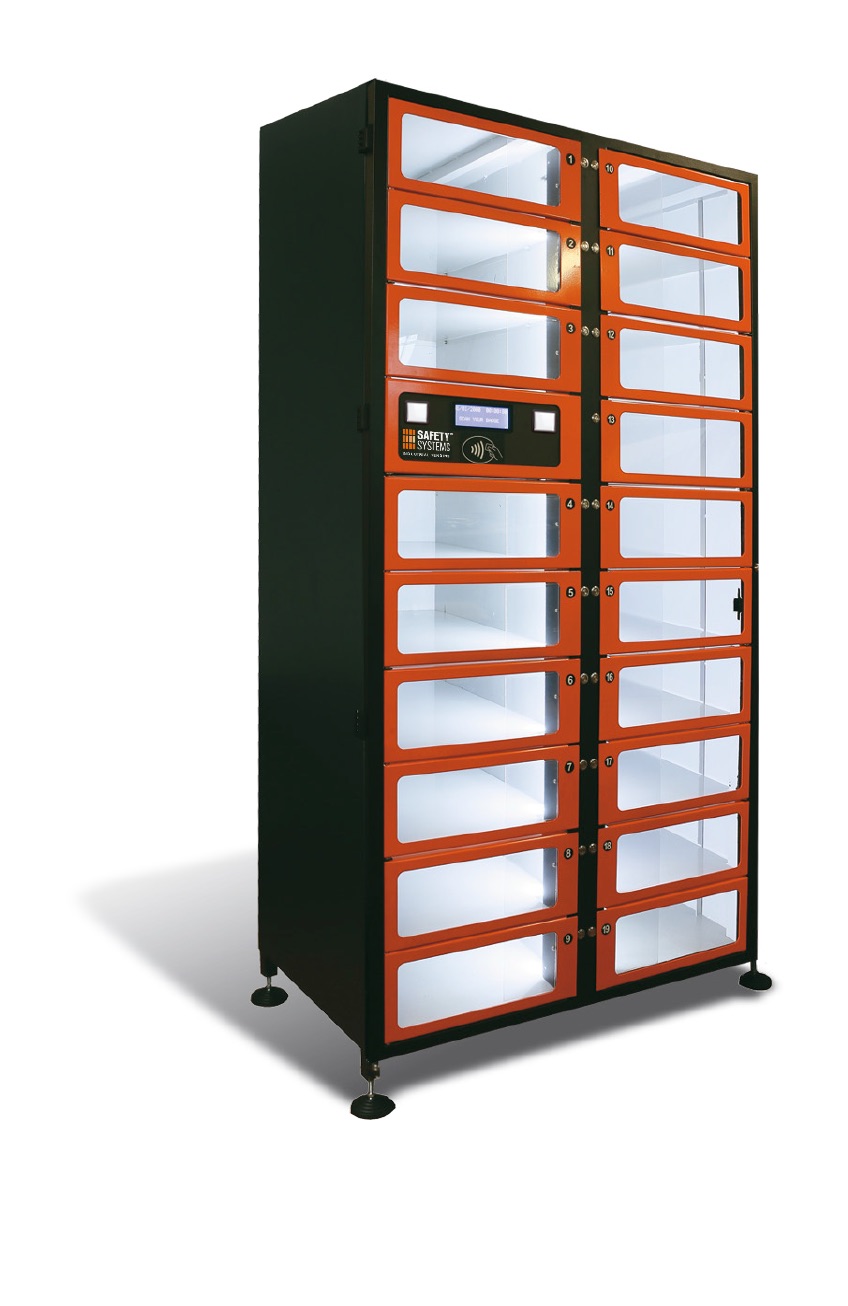

Automated Locker
ARGO LK PRO

Multifunction Automated Locker

Storage capacity

Standard version with 19 compartments in a footprint of 0.58 m3.

Withdrawal

On-line withdrawal
24/7 identification and authorization to withdraw the products assigned to users according to job profile and predefined maximum limits.
Automatic positioning of the selected product on the first full slot.
Off-line withdrawal
24/7 identification and authorization to withdraw the products assigned to users according to job profile, also in the case of network off-line, and data storage.
Withdrawal authorization
If the withdrawal limit is exceeded or a non-assigned product is required, the user is guided to obtain authorization through reading of his supervisor’s badge (super user).

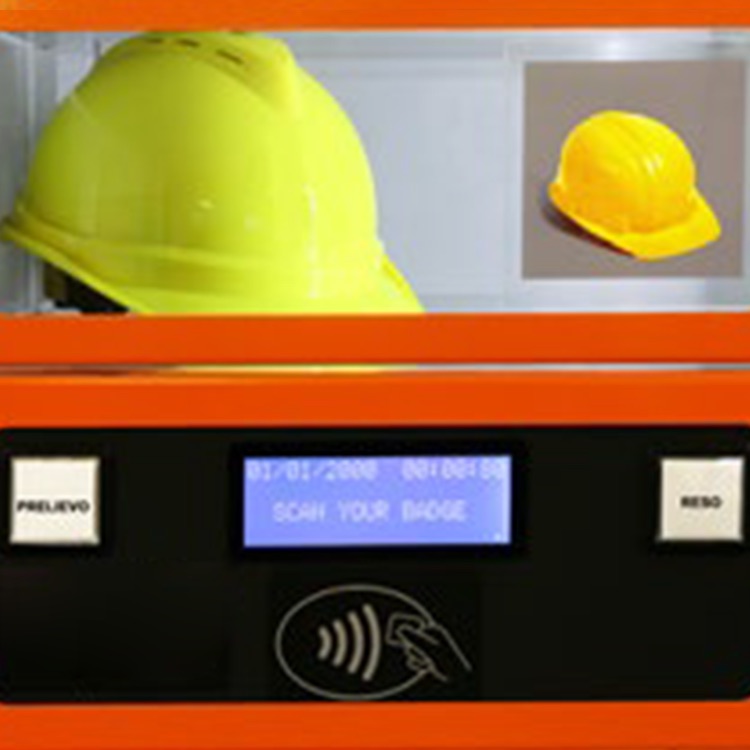

Slot door with large glass area
Lighted pushbutton for prior indication of products that can be withdrawn and/or returned
Withdrawal/Return function selection buttons
Backlit alphanumeric display for communication with user

User interface

Sliding doors
Manually-activated, convex-profile sliding doors with visual and acoustic warning if door has been left open.
Badge reader
Identification and withdrawal authorization using company employee ID badge (magnetic, contactless,…).
Lighted pushbuttons
Lighted pushbuttons for prior indication of products that can be withdrawn and/or returned. The user presses the button of the sliding door to be opened.
Product Identification
Graphic identification of products with customized icons to facilitate product selection.

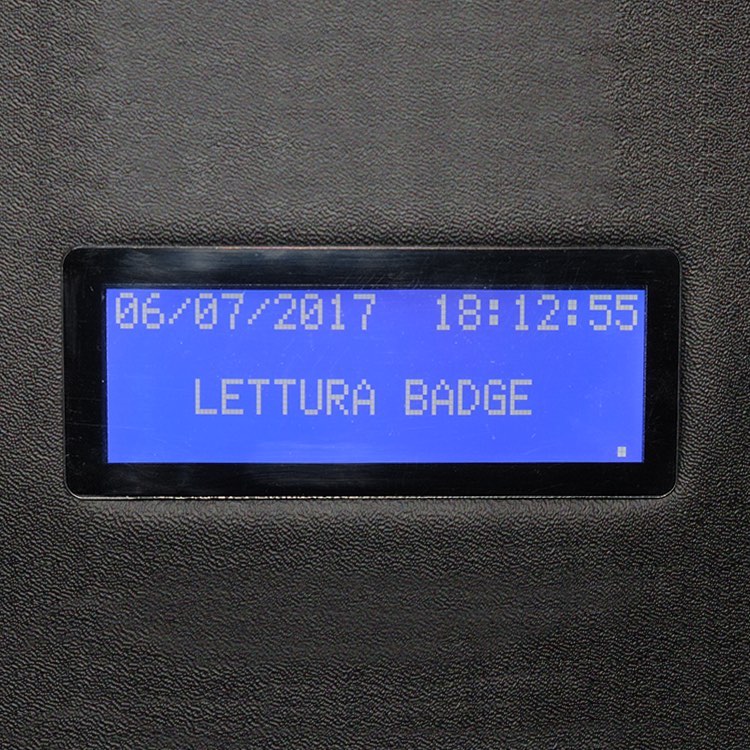

Alphanumeric display
Large, 4-line back-lit alphanumeric display for user alerts.

Company interface

Connection
Connection to Ethernet LAN/Wi-Fi/GSM.
Alerts
E-mail alerts to supervisors to track users who have withdrawn a quantity of products below the predefined minimum withdrawal limit.
Low inventory alerts and e-mail alerts to replenishment personnel.
Emergency opening
If necessary, the compartments can be accessed with the “not duplicable” security key provided.
Software interface
In the case of frequent job rotation, the software can be interfaced with the company HR and EHS management system.
Self-diagnosis
Self-diagnosis at predefined intervals with automatic alerts in the case of malfunctions.

Withdrawal/Return option

Optional materials return function with identification via company employee ID badge and selection of the specific “Return” function.

Technical sheet Argo LK-19 PRO (19 slots)

Power Supply
220VAc – 50 Hz – 150 W
Locker dimensions
H= 2000 mm
L= 1000 mm
P= 755 mm
Slot dimensions
H= 180 mm
L= 400 mm
P= 550 mm
